爱快路由器对接思科三层交换机

思科交换机：

下面列出了全部配置，粗体2行为主要配置，其它的是我其它设备使用

snmp-server community VENUSCN RO 61
snmp-server community MERCURECN RW 61
snmp-server community Public123 RO
snmp-server trap-source Vlan250
snmp-server source-interface informs Vlan250
snmp-server location EMTCN
snmp-server contact Service Informatique
snmp-server enable traps snmp authentication linkdown linkup coldstart warmstart
snmp-server enable traps transceiver all
snmp-server enable traps tty
snmp-server enable traps eigrp
snmp-server enable traps ospf state-change
snmp-server enable traps ospf errors
snmp-server enable traps ospf retransmit
snmp-server enable traps ospf lsa
snmp-server enable traps ospf cisco-specific state-change nssa-trans-change
snmp-server enable traps ospf cisco-specific state-change shamlink interface-old
snmp-server enable traps ospf cisco-specific state-change shamlink neighbor
snmp-server enable traps ospf cisco-specific errors
snmp-server enable traps ospf cisco-specific retransmit
snmp-server enable traps ospf cisco-specific lsa
snmp-server enable traps auth-framework sec-violation
snmp-server enable traps flash insertion removal
snmp-server enable traps power-ethernet police
snmp-server enable traps vtp
snmp-server enable traps vlancreate
snmp-server enable traps vlandelete
snmp-server enable traps license
snmp-server enable traps envmon fan shutdown supply temperature status
snmp-server enable traps stackwise
snmp-server enable traps port-security
snmp-server enable traps fru-ctrl
snmp-server enable traps entity
snmp-server enable traps cef resource-failure peer-state-change peer-fib-state-change inconsistency
snmp-server enable traps config-copy
snmp-server enable traps config
snmp-server enable traps config-ctid
snmp-server enable traps event-manager
snmp-server enable traps ipmulticast
snmp-server enable traps pim neighbor-change rp-mapping-change invalid-pim-message
snmp-server enable traps vstack
snmp-server enable traps bridge newroot topologychange
snmp-server enable traps stpx inconsistency root-inconsistency loop-inconsistency
snmp-server enable traps syslog
snmp-server enable traps ipsla
snmp-server enable traps errdisable
snmp-server enable traps mac-notification change move threshold
snmp-server enable traps vlan-membership
snmp-server host 10.30.252.252 version 2c Public123
snmp ifmib ifindex persist

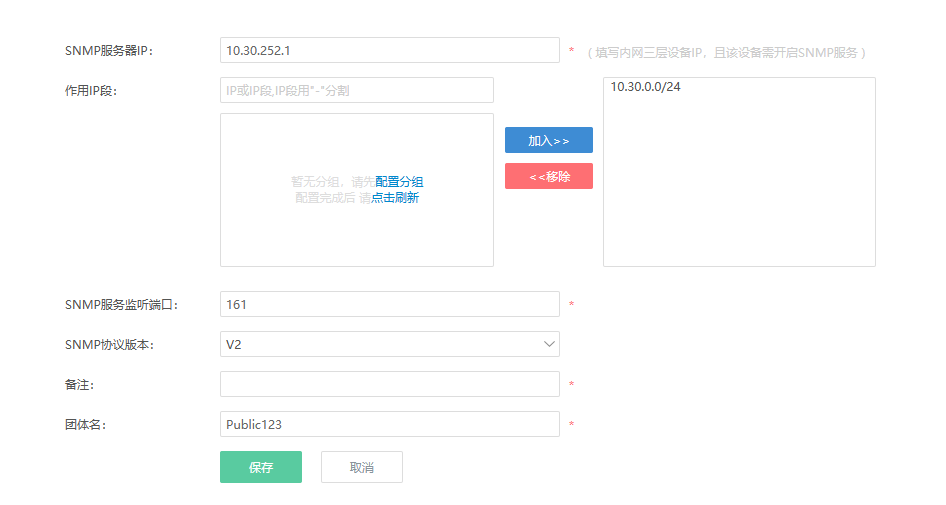

爱快配置

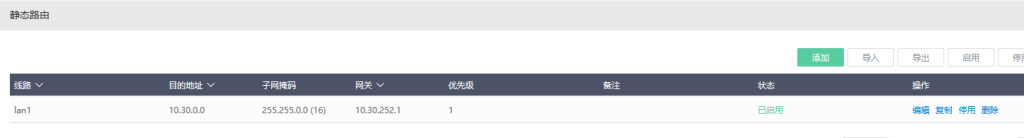

上面配置好后，配置相互的静态路由即可

ip route 0.0.0.0 0.0.0.0 10.30.252.252
