华为AC9700S-S上线配置

开局

使用CONSEL线连接AC控制台，跟据提示设置2个密码

aaa

local-user admin password

local-user admin privilege level 15

local-user admin service-type telnet terminal ssh ftp http

退出aaa,开始设置VLAN信息

vlan 110 125 162 170

interface Vlanif110 ip address 192.168.110.3 255.255.255.0

interface GigabitEthernet0/0/1

description link-to-CORE_SW

port link-type trunk

port trunk allow-pass vlan 2 to 4094

开启服务HTTP

http secure-server ssl-policy default_policy

http secure-server server-source -i all

http server enable

开启服务TELNET

telnet server enable

telnet server-source -i all

ssh server-source -i all

开启路由

ip route-static 0.0.0.0 0.0.0.0 192.168.110.2

控制台设置

user-interface vty 0 4

authentication-mode aaa

protocol inbound all

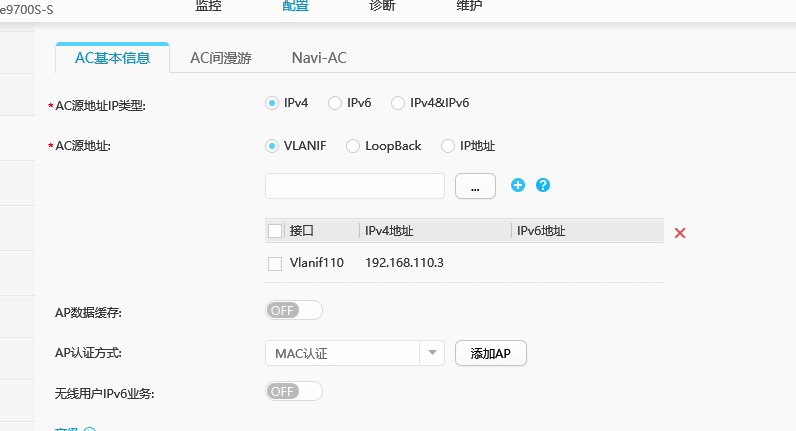

开启AC capwap指定vlanif

capwap source interface vlanif110

跟据提示设置capwap dtls psk和AP的用户名密码

前者密码无关紧要，后者用户名密码会同步到AP里面去，要记好。
